Safety update - September 9, 2026Do not reproduce an unexplained leak by running another cycle. Use powered-off observations and the exact-model manufacturer guidance; stop for any suspected internal leak.

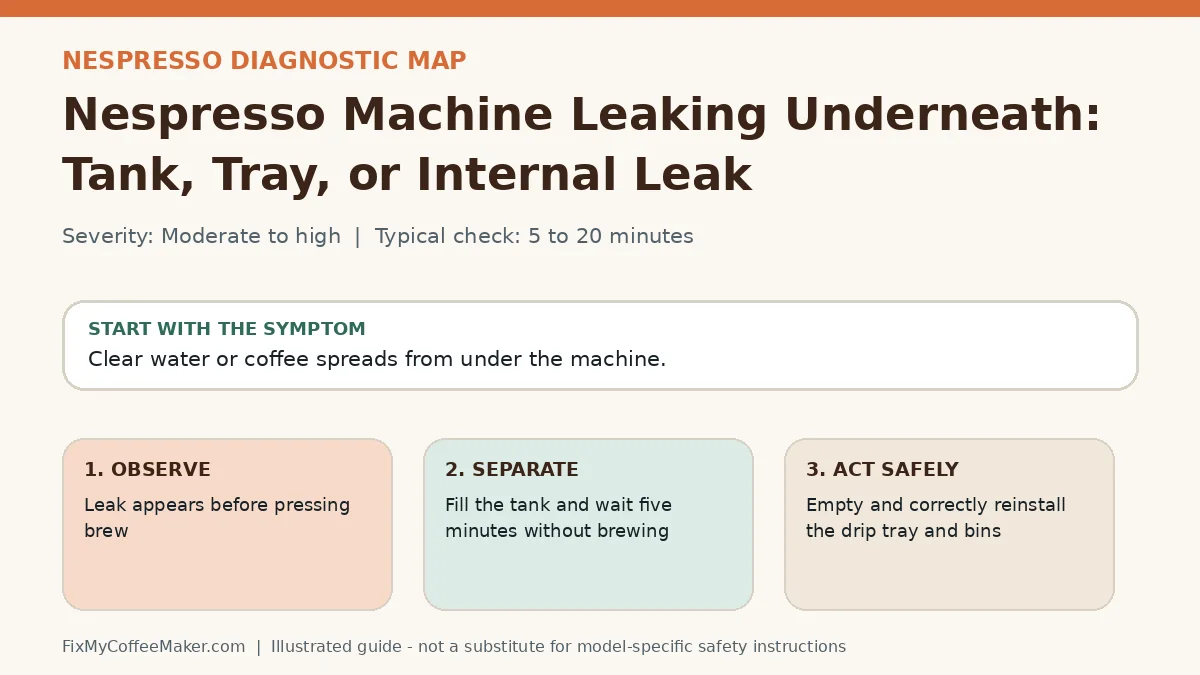

Quick diagnosis

Dry everything and observe the first wet point during an idle tank test and one water-only cycle. A leak while idle suggests the reservoir or inlet seal; coffee-colored water during brewing suggests the capsule path, outlet, or internal pressure leak.

Safety boundaryUnplug before touching removable grinder, capsule, needle, tank, tray, or milk-system parts. Do not open the electrical housing. Stop immediately for smoke, a burning smell, repeated outlet trips, a pressurized spray, or water entering the base.

What this symptom usually means

First identify where the water appears, when it appears, and whether it is clear or coffee-colored. Water under the machine can come from an overfilled tray, a tank connection, an outlet seal, or an internal hose. The timing narrows the source quickly.

Model-specific context: Some rinse water normally collects in the drip tray and used-capsule area. It should not travel from inside the powered base.

Representative capsule coffee machine used to illustrate a Nespresso diagnostic guide
Representative capsule-coffee setup; controls and light patterns vary by Nespresso model. Photo credit and license.

Clues to record before touching the machine

The fastest diagnosis comes from recording the machine's state before it is changed. Use your phone for a short video and write down whether the symptom occurs at startup, while heating, during grinding, after the pump starts, or during shutdown.

  • Leak appears before pressing brew
  • Tank empties while machine is off
  • Coffee collects behind capsule bin
  • Unplug, dry the machine and counter completely
  • Fill the tank and wait five minutes without brewing

Most likely causes, in diagnostic order

The list below is ordered from common and externally testable conditions toward causes that may need qualified service. It is not a replacement for the error table or safety instructions for your exact model.

  1. Reservoir valve seal is dirty
  2. Drip tray is overfilled
  3. Capsule did not seal correctly
  4. Drip tray or used-capsule bin is overfilled
  5. Water tank valve or seal is not seating
  6. Coffee path is blocked and pressure redirects liquid
  7. An internal hose or fitting is leaking

Safe, powered-off location checks

Do not begin by replacing parts or repeating the full maintenance cycle. Complete these checks in order and stop if the machine behaves abnormally.

  1. Stop use if water is emerging through the housing or base. Unplug only from a dry, safe area and allow the machine to cool.
  2. Record where the leak was first seen, using existing observations. Do not repeat a powered brew to reproduce a suspected internal leak.
  3. Inspect only removable owner-serviceable tanks and trays while the machine is off and cool. Do not open the case or press tools into tank valves.
  4. Contact manufacturer support for an unexplained or recurring leak. An exterior drying period does not prove the electrical interior is safe.
Why this test mattersThe same visible symptom can come from a simple setup issue or an internal fault. Sound, timing, and whether a second outlet or mode works help isolate the failing part of the process without disassembly.

Visual reference and safety

The earlier generic animation has been withdrawn for this page. Use the exact-model manufacturer reference and the written safety guidance instead; no hands-on repair demonstration is claimed.

Safe fixes, easiest first

  1. Stop use if water is emerging through the housing or base. Unplug only from a dry, safe area and allow the machine to cool.
  2. Record where the leak was first seen, using existing observations. Do not repeat a powered brew to reproduce a suspected internal leak.
  3. Inspect only removable owner-serviceable tanks and trays while the machine is off and cool. Do not open the case or press tools into tank valves.
  4. Contact manufacturer support for an unexplained or recurring leak. An exterior drying period does not prove the electrical interior is safe.

How to interpret what happens next

Result 1
Leak occurs while idle: suspect the tank, valve, or reservoir seal
Result 2
Leak begins only during brewing: inspect outlet path and seals
Result 3
Water collected inside the designated tray differs from water escaping the housing; volume alone does not establish safety.
Result 4
Water emerges from the base: unplug and arrange service

Common misdiagnosis

Condensation and automatic-rinse water in the drip tray can be normal. Water spreading from beneath the electrical housing is not.

When to stop troubleshooting

Owner-level checks end when the next step would expose wiring, a heater, pressurized plumbing, sharp internal parts, or a sealed grinder. Stop and contact the manufacturer or a qualified appliance technician when any of these apply:

  • Water reaches the cord, plug, controls, or electrical base
  • The outlet trips
  • The leak is hot or pressurized
  • A cracked internal part is visible but not user-serviceable

Prevent the problem from returning

  • Empty trays before they reach the full marker
  • Lift the tank straight up rather than twisting
  • Keep coffee grounds off seals and mating surfaces

Sources and verification

This page paraphrases owner-level manufacturer guidance and adds an original symptom-first decision path. It does not reproduce a manual. Exact button sequences should always be checked against the model label and current official instructions.

Editorial status: desk-researched against official support material; diagnostic media are original illustrations. We do not claim hands-on testing of this exact machine. See our evidence labels and report a correction.
