Quick diagnosis

On the Magnifica S, the combination of icons matters more than a single blinking light. Photograph the whole panel, check the tank, grounds container, infuser door, and steam dial, then compare the exact pattern with the official model support.

Safety boundaryUnplug before touching removable grinder, capsule, needle, tank, tray, or milk-system parts. Do not open the electrical housing. Stop immediately for smoke, a burning smell, repeated outlet trips, a pressurized spray, or water entering the base.

What this symptom usually means

The rhythm matters more than the color alone. Count the flashes, note whether they repeat, and record which buttons are illuminated. Many machines use the same color for heating, maintenance, closure problems, and faults.

Model-specific context: The Magnifica S uses icons rather than a text display. Similar-looking models can assign different meanings to the same location on the panel.

Representative automatic espresso machine used to illustrate a De'Longhi diagnostic guide
Representative espresso equipment; not the exact De'Longhi automatic or manual model in this guide. Photo credit and license.

Clues to record before touching the machine

The fastest diagnosis comes from recording the machine's state before it is changed. Use your phone for a short video and write down whether the symptom occurs at startup, while heating, during grinding, after the pump starts, or during shutdown.

  • Grounds icon flashes with warning triangle
  • Steam light remains active
  • Pattern began after removing the infuser
  • Record a 15-second video of the full repeating pattern
  • Count flashes between pauses

Most likely causes, in diagnostic order

The list below is ordered from common and externally testable conditions toward causes that may need qualified service. It is not a replacement for the error table or safety instructions for your exact model.

  1. A container is not detected
  2. Steam dial is left open
  3. Infuser is not in its home position
  4. Normal warm-up or cool-down
  5. A maintenance reminder
  6. Tank, tray, lid, or brew-group position is not detected
  7. The controller has logged a fault

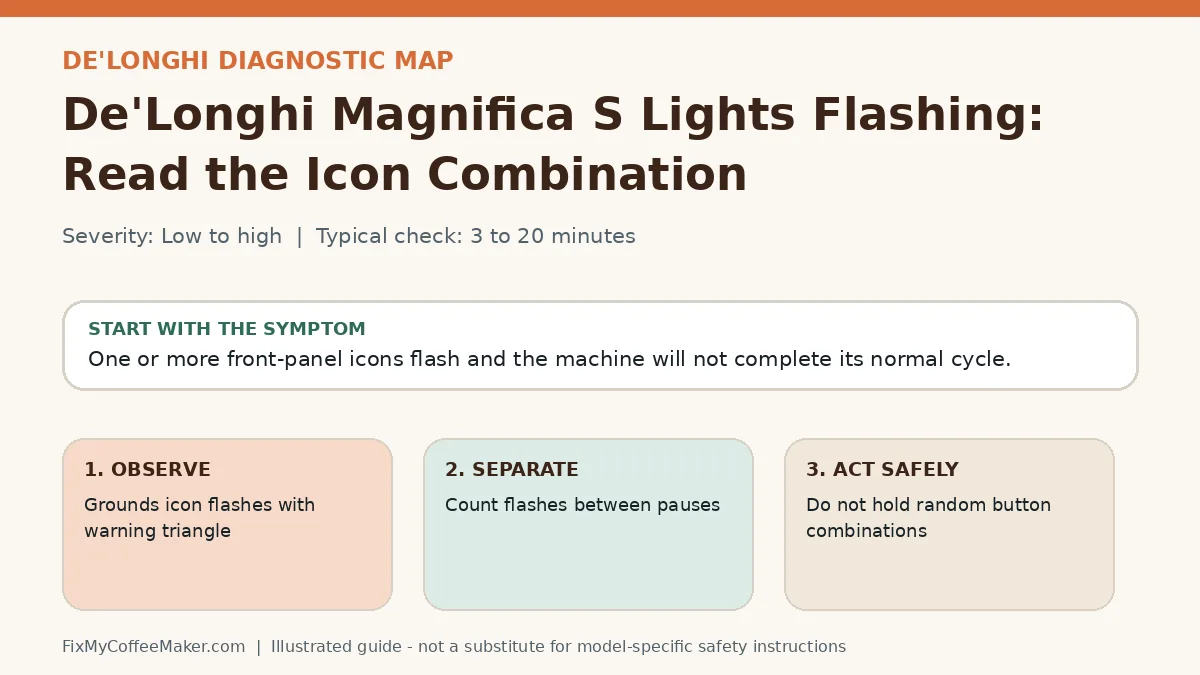

Diagnostic decision map for De'Longhi Magnifica S Lights Flashing: Read the Icon Combination
Original Fix My Coffee Maker diagnostic map. It summarizes the observation, separating test, and safe first action.

The 60-second separating test

Do not begin by replacing parts or repeating the full maintenance cycle. Complete these checks in order and stop if the machine behaves abnormally.

  1. Record a 15-second video of the full repeating pattern
  2. Count flashes between pauses
  3. Check the tank, tray, lever, and service door
  4. Let the machine cool and restart once
Why this test mattersThe same visible symptom can come from a simple setup issue or an internal fault. Sound, timing, and whether a second outlet or mode works help isolate the failing part of the process without disassembly.

Illustrated video walkthrough

Original 8-second silent, captioned diagnostic animation. It is an illustrated decision guide, not footage of this exact machine.

Safe fixes, easiest first

  1. Do not hold random button combinations
  2. Remove and reseat all user-removable containers
  3. Close the head, lever, or service door without forcing it
  4. Allow the normal heat-up period to finish
  5. Match the recorded pattern to the official support guide
  6. Use one controlled power cycle, then seek support if the same pattern returns

How to interpret what happens next

Result 1
Light becomes steady ready-state: the machine completed warm-up or detected the part
Result 2
Pattern changes after reseating: a position sensor was involved
Result 3
Pattern returns after one brew: maintenance or an intermittent fault remains
Result 4
Fast red or error display persists: stop using the machine

Common misdiagnosis

Color descriptions in forum posts are unreliable. Warm white, amber, orange, and red can look different under kitchen lighting or on video.

When to stop troubleshooting

Owner-level checks end when the next step would expose wiring, a heater, pressurized plumbing, sharp internal parts, or a sealed grinder. Stop and contact the manufacturer or a qualified appliance technician when any of these apply:

  • Red fault pattern persists after cooling
  • The machine is hot but never reaches ready
  • A door or lever would require force
  • There is a leak, odor, smoke, or tripped outlet

Prevent the problem from returning

  • Keep a photo of the model label
  • Clean sensors and contact areas only as the manual permits
  • Do not remove trays during moving parts or automated rinses

Sources and verification

This page paraphrases owner-level manufacturer guidance and adds an original symptom-first decision path. It does not reproduce a manual. Exact button sequences should always be checked against the model label and current official instructions.

  • De'Longhi support center - official manufacturer information used to verify model terminology and owner-level procedures.

Editorial status: desk-researched against official support material; diagnostic media are original illustrations. We do not claim hands-on testing of this exact machine. See our evidence labels and report a correction.
