Quick diagnosis

Confirm the correct carafe is attached for the selected hot or cold recipe, then test the intake path with cold water. No draw after complete cleaning and correct assembly suggests a seal, coupling, or machine-side steam/air supply issue.

Safety boundaryUnplug before touching removable grinder, capsule, needle, tank, tray, or milk-system parts. Do not open the electrical housing. Stop immediately for smoke, a burning smell, repeated outlet trips, a pressurized spray, or water entering the base.

What this symptom usually means

Separate a steam-supply problem from a milk-technique problem. Test the wand or milk outlet with water first. Strong steam with poor foam points to milk temperature, air intake, or technique; weak or no steam points to a blockage, assembly issue, or heat fault.

Model-specific context: Eletta Explore may use different carafes and settings for hot and cold drinks. A carafe can be clean but not recognized or matched to the selected recipe.

Representative automatic espresso machine used to illustrate a De'Longhi diagnostic guide
Representative espresso equipment; not the exact De'Longhi automatic or manual model in this guide. Photo credit and license.

Clues to record before touching the machine

The fastest diagnosis comes from recording the machine's state before it is changed. Use your phone for a short video and write down whether the symptom occurs at startup, while heating, during grinding, after the pump starts, or during shutdown.

  • Carafe icon is absent
  • One carafe works but the other does not
  • Milk lid was recently disassembled
  • Purge briefly into the tray and observe steam strength
  • Remove and rinse user-removable milk parts

Most likely causes, in diagnostic order

The list below is ordered from common and externally testable conditions toward causes that may need qualified service. It is not a replacement for the error table or safety instructions for your exact model.

  1. Wrong carafe is selected
  2. Intake tube or lid passage is blocked
  3. Carafe coupling is not sealed
  4. Dried milk blocks the tip or air intake
  5. Milk system parts are assembled incorrectly
  6. The machine has not reached steam temperature
  7. Milk is too warm or unsuitable for the selected program

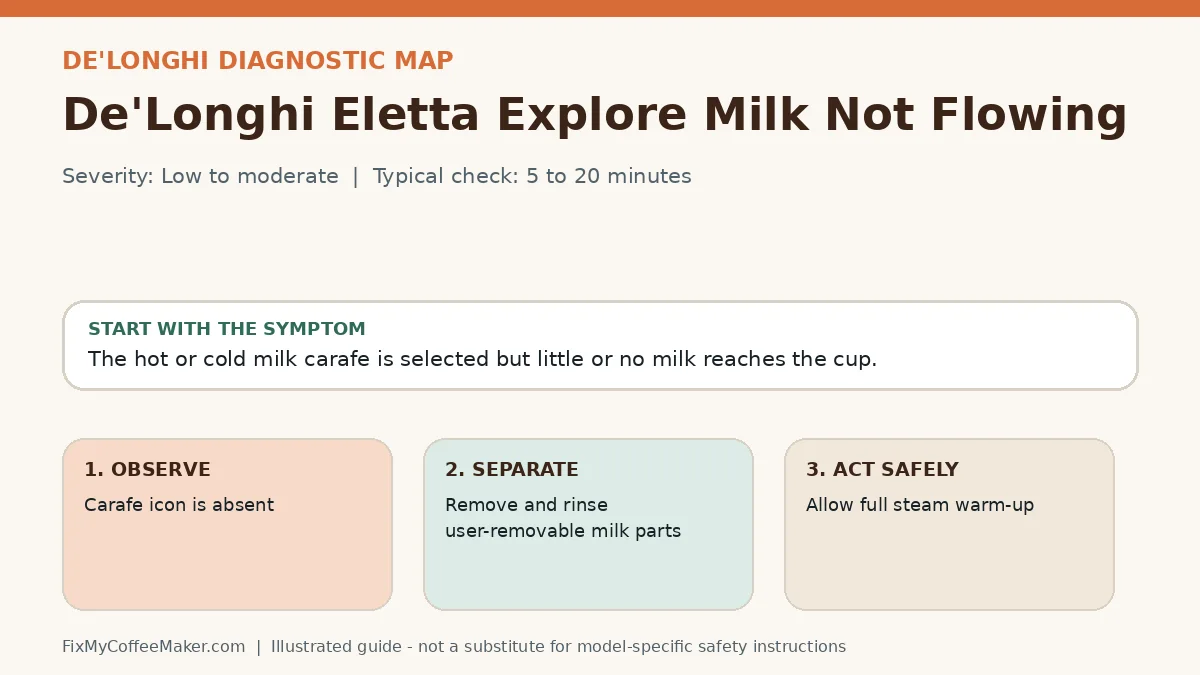

Diagnostic decision map for De'Longhi Eletta Explore Milk Not Flowing
Original Fix My Coffee Maker diagnostic map. It summarizes the observation, separating test, and safe first action.

The 60-second separating test

Do not begin by replacing parts or repeating the full maintenance cycle. Complete these checks in order and stop if the machine behaves abnormally.

  1. Purge briefly into the tray and observe steam strength
  2. Remove and rinse user-removable milk parts
  3. Test with cold water to see whether the system draws liquid
  4. Use cold milk and the manufacturer-recommended fill level
Why this test mattersThe same visible symptom can come from a simple setup issue or an internal fault. Sound, timing, and whether a second outlet or mode works help isolate the failing part of the process without disassembly.

Illustrated video walkthrough

Original 8-second silent, captioned diagnostic animation. It is an illustrated decision guide, not footage of this exact machine.

Safe fixes, easiest first

  1. Allow full steam warm-up
  2. Wipe and purge the wand immediately before and after use
  3. Clear only the removable tip holes with the supplied tool
  4. Reassemble tubes, lids, and air regulators exactly
  5. Test with cold fresh milk
  6. Descale if both steam and hot-water performance have weakened

How to interpret what happens next

Result 1
Strong steam but large bubbles: adjust air introduction and position
Result 2
Water draws but milk does not: residue or milk-system assembly is likely
Result 3
No steam and no hot water: heating or scale issue may require service
Result 4
Steam fades quickly: allow recovery and check maintenance status

Common misdiagnosis

A clogged air inlet can produce hot flat milk even when steam is present. Cleaning only the visible milk nozzle may not reach that inlet.

When to stop troubleshooting

Owner-level checks end when the next step would expose wiring, a heater, pressurized plumbing, sharp internal parts, or a sealed grinder. Stop and contact the manufacturer or a qualified appliance technician when any of these apply:

  • Steam escapes from a joint or inside the housing
  • The wand is loose or damaged
  • There is a burning smell
  • A hot-water fault persists after approved cleaning

Prevent the problem from returning

  • Purge and wipe after every drink
  • Refrigerate milk-system parts when directed
  • Deep-clean milk paths daily when used

Sources and verification

This page paraphrases owner-level manufacturer guidance and adds an original symptom-first decision path. It does not reproduce a manual. Exact button sequences should always be checked against the model label and current official instructions.

  • De'Longhi support center - official manufacturer information used to verify model terminology and owner-level procedures.

Editorial status: desk-researched against official support material; diagnostic media are original illustrations. We do not claim hands-on testing of this exact machine. See our evidence labels and report a correction.
