Quick diagnosis
Error 04 generally means the brew group is not correctly positioned. Remove it only after a normal shutdown, place it in its neutral position according to Philips guidance, clear loose grounds from the compartment, and reinstall it until it locks without force.
What this symptom usually means
An error code is a starting point, not permission to disassemble the machine. Record it exactly, complete only the user checks named by the manufacturer, and note when it appears: at power-up, grinding, brewing, rinsing, or heating.
Model-specific context: A group that is mechanically out of sync may need the machine to reset its drive position with the group removed, following the official procedure for the model.
Clues to record before touching the machine
The fastest diagnosis comes from recording the machine's state before it is changed. Use your phone for a short video and write down whether the symptom occurs at startup, while heating, during grinding, after the pump starts, or during shutdown.
- Error began after reinstalling the brew group
- PUSH markings are not aligned
- Service door will not close fully
- Photograph the code and all illuminated icons
- Remove coffee and let the machine finish or stop
Most likely causes, in diagnostic order
The list below is ordered from common and externally testable conditions toward causes that may need qualified service. It is not a replacement for the error table or safety instructions for your exact model.
- Brew group is not in neutral position
- Loose grounds block seating
- Drive position and group position do not match
- Brew group or grinder cannot move normally
- Air or flow problem is detected
- Temperature is outside range
- A sensor or control fault is logged
The 60-second separating test
Do not begin by replacing parts or repeating the full maintenance cycle. Complete these checks in order and stop if the machine behaves abnormally.
- Photograph the code and all illuminated icons
- Remove coffee and let the machine finish or stop
- Check tank, tray, brew group, and bean path as permitted
- Power-cycle once after a full cool-down

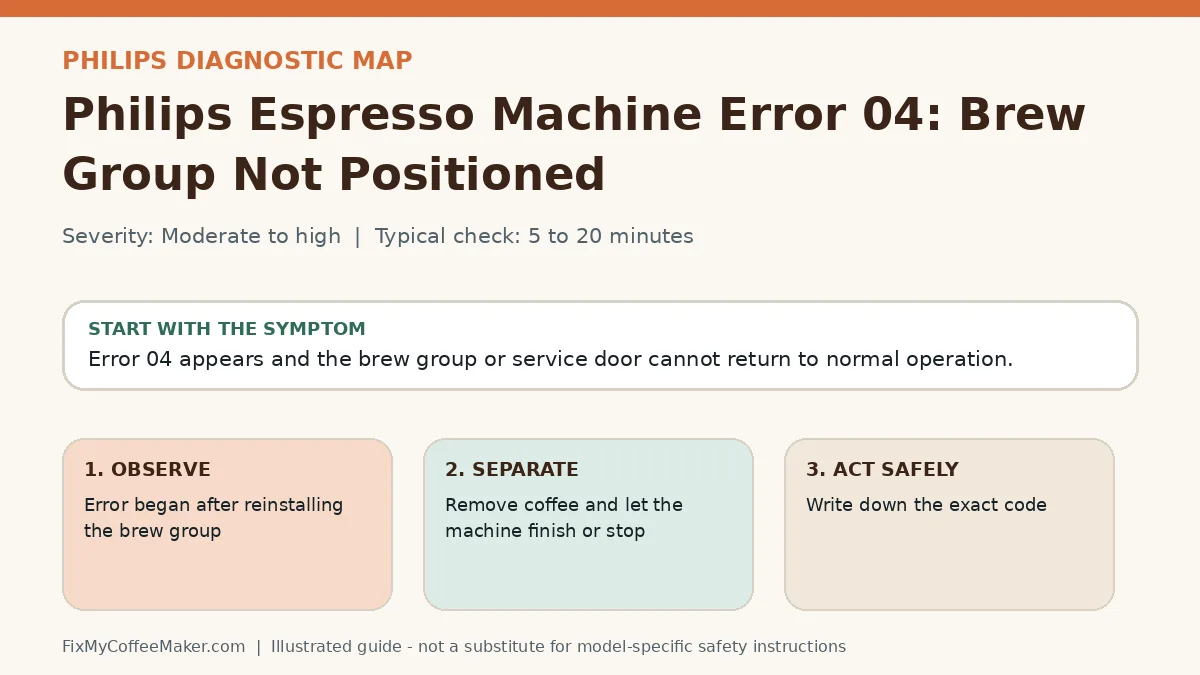

Illustrated video walkthrough
Original 8-second silent, captioned diagnostic animation. It is an illustrated decision guide, not footage of this exact machine.
Safe fixes, easiest first
- Write down the exact code
- Follow the official user-level action for that code
- Clean and reseat removable components
- Clear only accessible blockages
- Restart once
- If the same code returns, stop repeated attempts and contact support
How to interpret what happens next
Code clears after reseating: a removable part or position caused it
Code returns during the same motion: that system needs inspection
Different code appears: document both rather than guessing
Machine cannot complete startup: service is likely
Common misdiagnosis
Codes can differ across series even within one brand. Advice for a visually similar machine may send you to the wrong component.
When to stop troubleshooting
Owner-level checks end when the next step would expose wiring, a heater, pressurized plumbing, sharp internal parts, or a sealed grinder. Stop and contact the manufacturer or a qualified appliance technician when any of these apply:
- Grinding or brew-group movement sounds forced
- Error returns immediately
- Heat, smell, smoke, or leak is present
- A repair would require opening the housing
Prevent the problem from returning
- Keep the brew path clean
- Do not interrupt moving parts
- Save the model and serial number with purchase records
Sources and verification
This page paraphrases owner-level manufacturer guidance and adds an original symptom-first decision path. It does not reproduce a manual. Exact button sequences should always be checked against the model label and current official instructions.
- Philips Series 3200 support - official manufacturer information used to verify model terminology and owner-level procedures.
- Philips espresso machine error-code guidance - official manufacturer information used to verify model terminology and owner-level procedures.
Editorial status: desk-researched against official support material; diagnostic media are original illustrations. We do not claim hands-on testing of this exact machine. See our evidence labels and report a correction.
